Product name：DZ47LE-100
Product brand：Zhejiang YADE Electric Co. Ltd.
Product area： HOUJIE Industrial Zone,Liushi town,Yueqing County,Wenzhou city,Zhejiang province
Customer service：13706780110（Sales Manager）
Online consultation：
First, the scope
DZ47LE-125 series leakage circuit breakers ( 125A leakage circuit breaker ) for AC 50Hz or 60Hz, rated voltage 400V, rated current of 125A short circuit and overload protection following lighting distribution system or motor distribution system, product appearance compact, light weight, excellent performance and reliable breaking capacity high, tripping quickly, rail, housing and components of high fire-retardant and impact-resistant plastic, long life, under normal circumstances can be as infrequent conversion of the lines used, it can be installed over undervoltage, shunt release and other accessories, also applies to the isolating switch and a circuit and under voltage protection and remote disconnect purposes.DZ47LE-125 leakage circuit breakers in low voltage distribution systems have increasingly been used as a ground fault and direct contact, indirect contact shock of backup protection. The products are mainly used in building illumination and power distribution systems, in line with GB16917.1 and IEC61009-1 standards. Our company has passed the national CCC, CE certification. & nbsp;

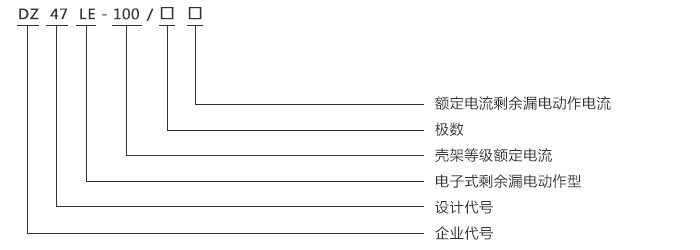

Second, model and specification
Third, the structural characteristics
DZ47LE-125 leakage circuit breaker is assembled by the leakage release from attachment and DZ47-125 miniature circuit breakers, earth leakage circuit breaker current action electronic leakage circuit breakers, mainly by the zero-sequence current transformer, electronic component board, leakage release and circuit breaker with overload and short circuit protection components.Fourth, the main parameters and technical performance
◆ Main specifications:◇ frame degree current: 63A, 80A, 100A, 125A
◇ technology is divided into: Two-wire unipolar, bipolar two-wire, three-pole three-wire, three-pole four-wire.
◆ Main technical parameters:
◇ mechanical and electrical life:
Electrical life: 4000 times, COSφ = 0.85 ~ 0.9;
Mechanical life: 2000 times; ◇ Operating frequency: In≤25A 240 times/h; In> 25A 120 times/h;
◆ insulation withstand voltage performance
◇ all connected together and between the neutral pole can withstand impulse voltage 6000V peak of;
◇ each pole and neutral pole connected together and between the metal stent can withstand peak 8000V
| Rated voltage (V) | frame degree rated current (A) | Poles | Neutral | rated current of | Rated measuring electrical operating current | Rated measuring electrical non-operating current | Rated Short circuit breaking capacity | overvoltage setting value | measuring electrical operation time | trip type |
| 230 | 125A | 1 | N | 63,80,100,125 | 30,50,100,200,300 </td> | 15,25,50,100,150 | 10KA | DZ47GQ-125 (280 ± 5%) | ≤0.1 | C, D |
| 230 | 2 | / | ||||||||
| 400 | 3 | / | ||||||||
| 230/400 | 3 | N |
| rated current | initial state | test current | specified time | Expected results |
| ≤ 63 | cold, hot | 1.05ln | t≥1h | not tripping |
| > 63 | t≥2h | |||
| ≤ 63 | cold, hot | 1.30ln | t <1h | trip |
| > 63 | t <2h | |||
| All value | cold | 20ln | t <360s | trip |
| All value | cold | 5ln ~ 10ln | t≥1s | not release |
| All value | cold | 10ln ~ 20ln | t <1s | trip |
Five, shape and installation dimensions
Six, Order Information
when ordering indicate the following points:Product type and name: If DZ47LE-125 leakage circuit breaker /DZ47LE-125 leakage open space.
Instantaneous tripping Current Rating: such as 125A.
Breaker poles: as 3P + N.
Order number: as 365.
Ordering example: DZ47LE-125 leakage circuit breaker , 1P + N, 100A, 600 只.
